Sample and analysis objective
Flexible substrates are sensitive to fixturing and local deformation. Define the support method, opening region and traces that may be exposed before evaluating removal and inspection paths.
| Item | Case information |
|---|---|
| Sample type | Flexible board / Flex Board |
| Observation objective | Connection regions, fine traces and local surface layers |
| Items to validate | Support, deformation, residue and trace condition |
Processing record

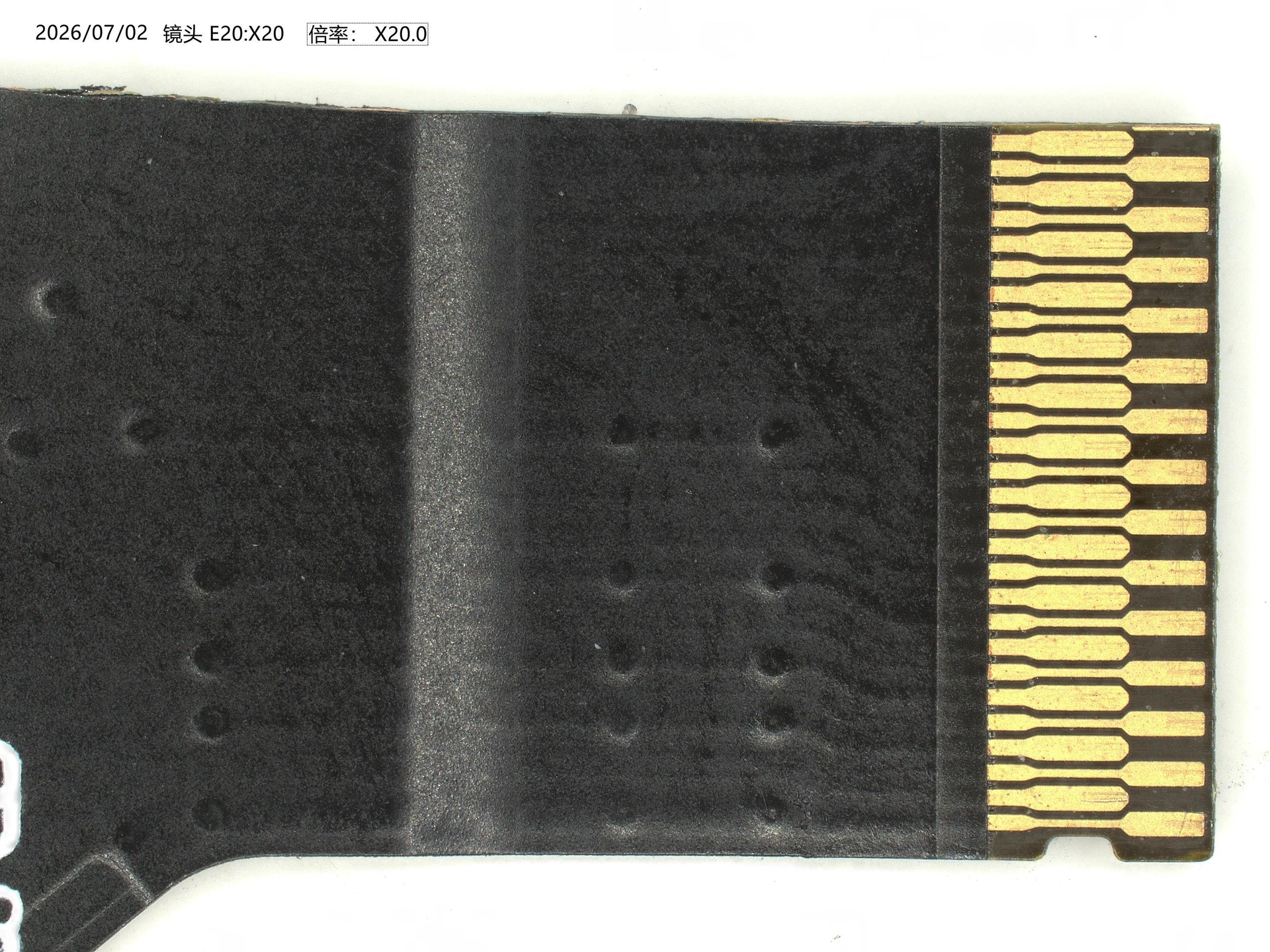

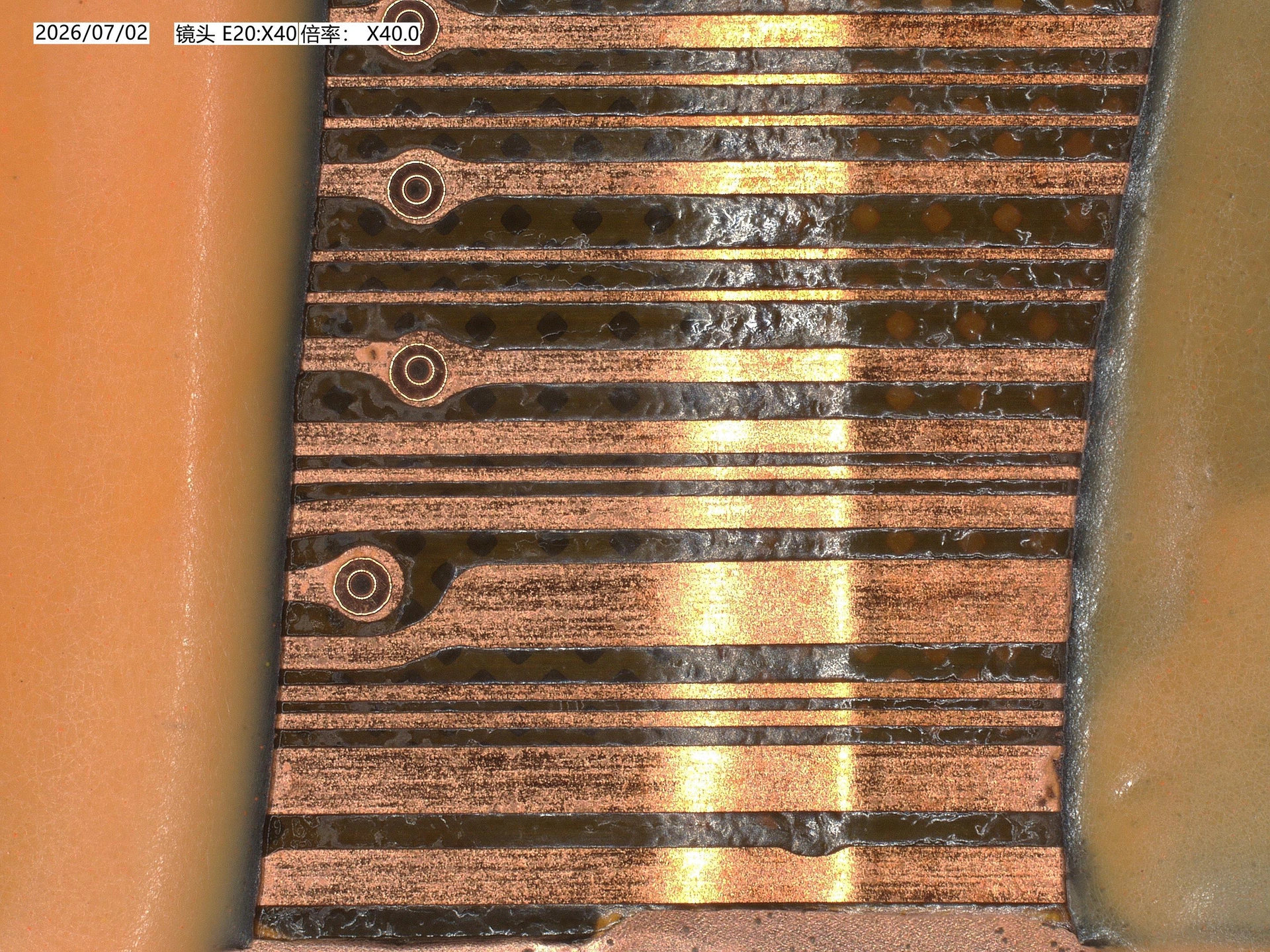

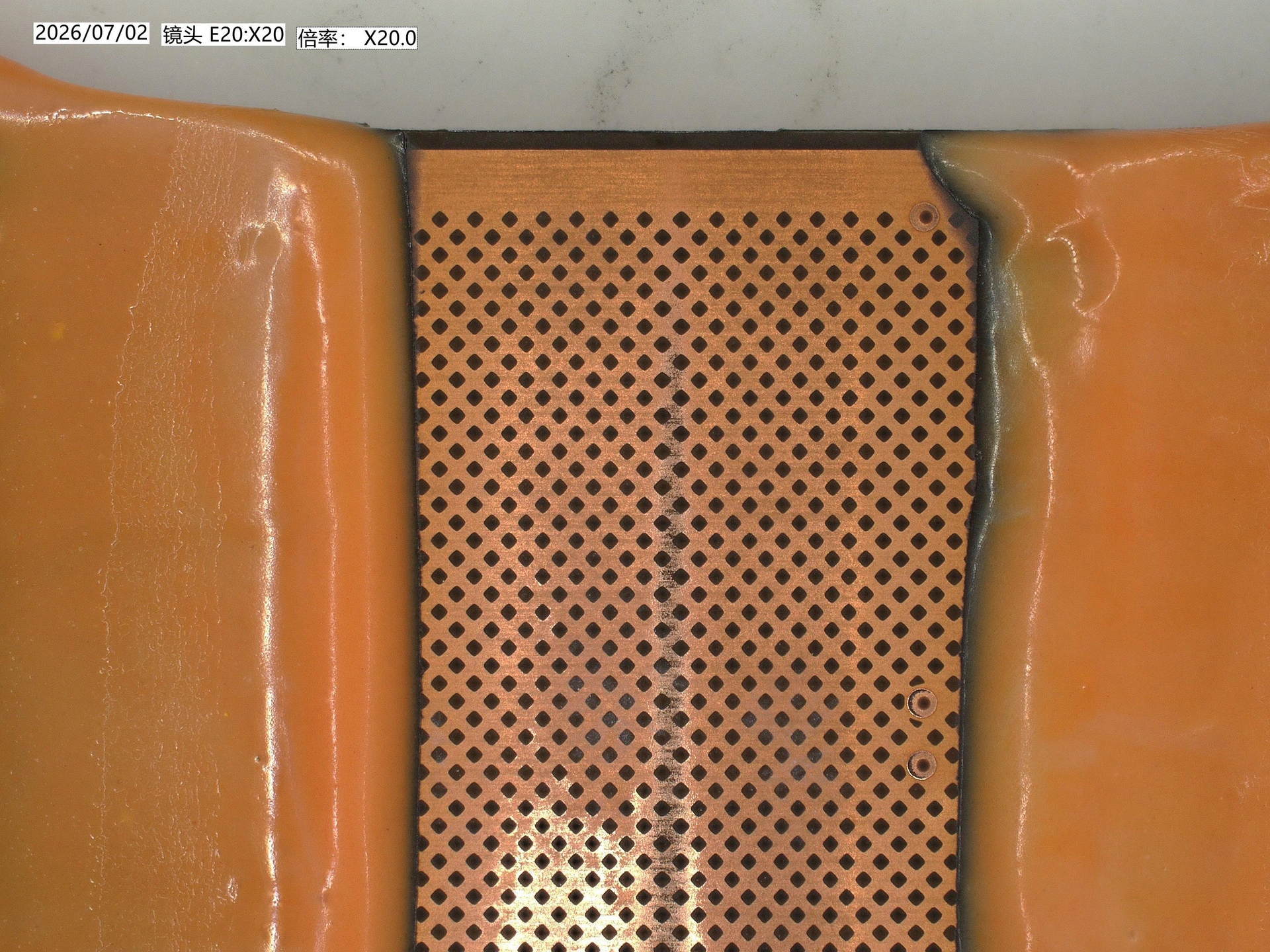

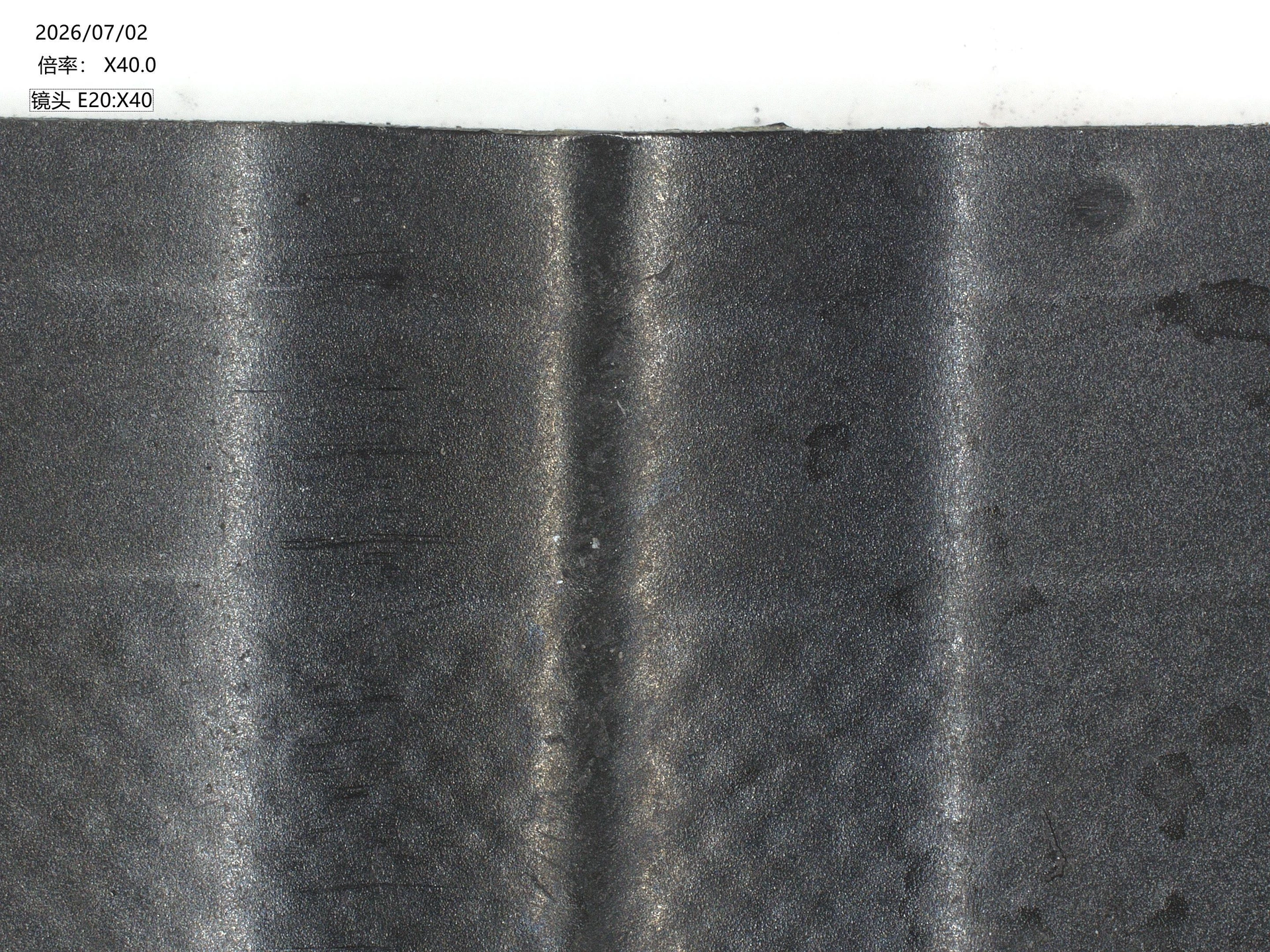

Two image groups show overall regions and local trace details on flexible boards. The source does not specify common processing conditions, thickness changes or electrical results for the traces.
Actual sample images
Result review priorities
- Provide suitable support and record both the natural sample shape and fixtured condition.
- Inspect fine-trace edges, surface residue and local deformation.
- Verify continuity and insulation requirements with appropriate electrical measurements.
